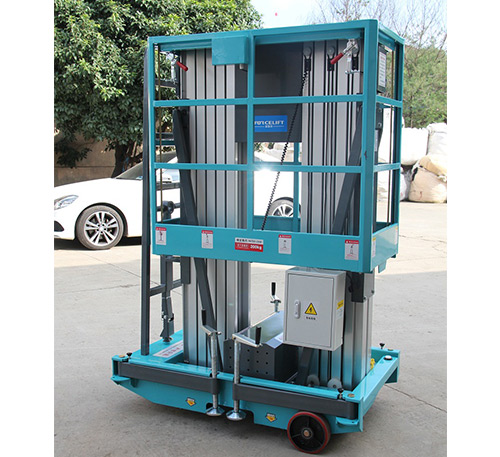

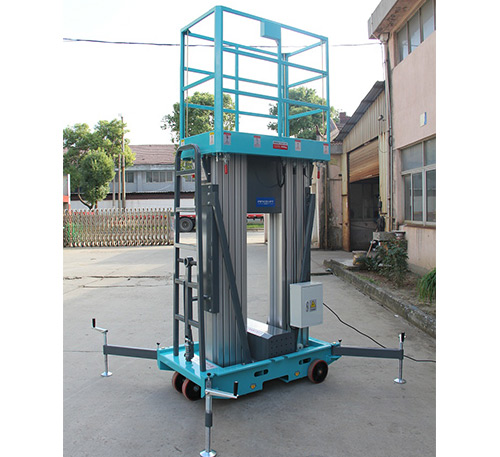

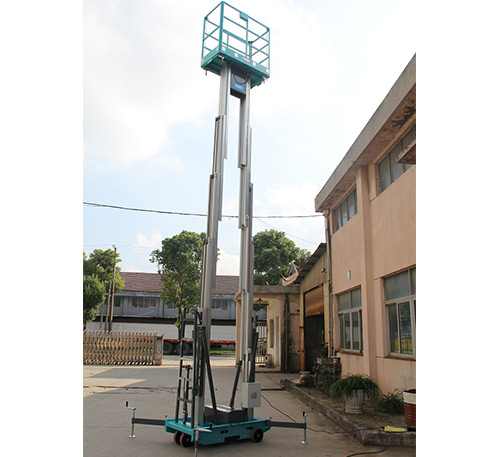

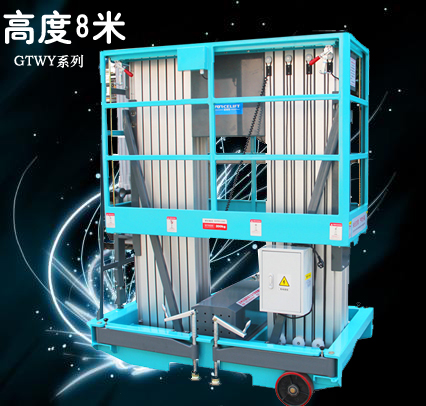

双桅式铝合金升降机Double Mast aluminum aerial Work Platform

      型号 Moder   GTWY8-200S

安全载荷/Pated Load ...................................................200kg

工作高度/Working Height ....................................................10m

平台高度/Platform Height ...................................................8m

 整机长度/Overall length..............................................................1.38m

整机宽度/Overall width...............................................................0.85m

整机高度/Overdll height...............................................................1.98m

工作平台尺寸/Platform size.................................................1.18*0.62m

离地间隙/Ground clearance.......................................................0.08m

轴距/Wheel bas.....................................................................................1.24m

支撑面积Maximum support area..........................................................2*1.8m

 起升电机/Lifting power  AC...................................................................220VAC/1.1kw

                    DC...................................................................24VDC/0.8kw

 蓄电池/Battery.................................24v/100Ah

充电器/Charger.................................24v/50A

上升速度/Lifting speed ................................69sec

下降速度/Descending speed ............................可调

轮胎/Tyre 后胎/Rear tyre.................................φ150*50mm

          前胎/Front tyre................................φ150*50mm

 整机重量/Weight  GTWY8-200S...............480kg

标准配置 /  Standard configuration

-调平支腿 / Chassis wiht level gauge         -紧急停止按钮/Emerhgency stop button

-双控制器操作/Dual activated up/down switch  -紧急下降拉钮/Emerhgency Descending button

-水平指示器/Level gauge                   -超载限制/Over load protection
