产品详细

44 44 44 44

产品名称: GTWY12-200S

发布日期: 2018-04-08

点击数: 1871

询价: 点击产品询价

二维码:

简述:

产品详情

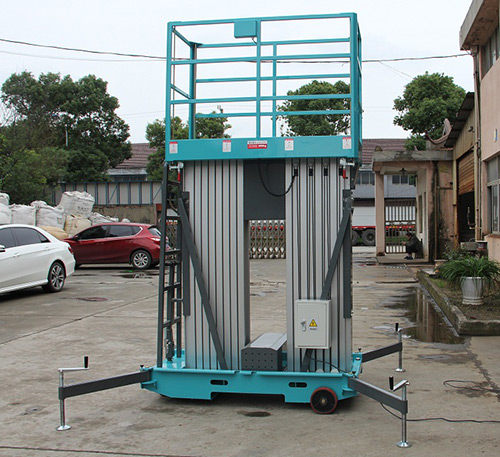

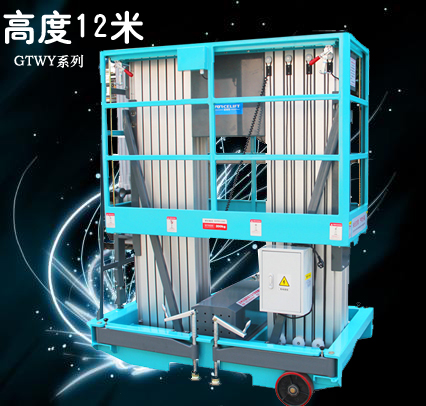

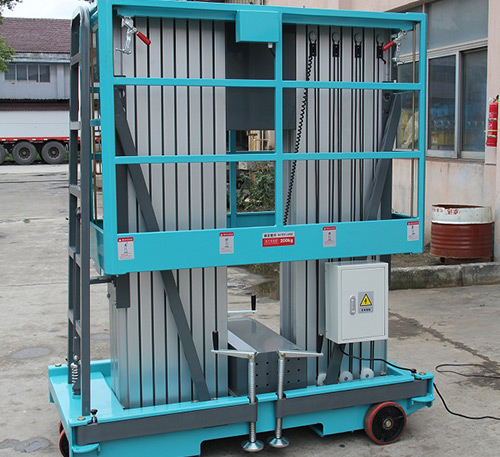

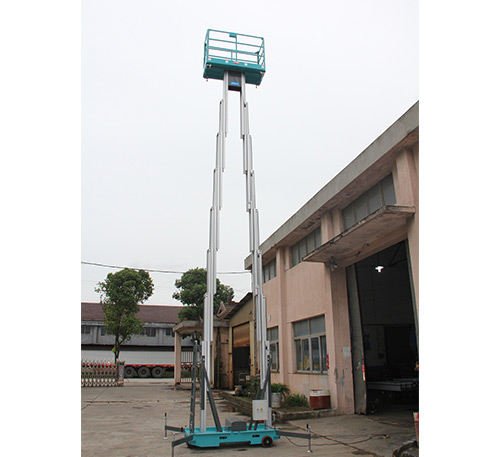

双桅式铝合金升降机Double Mast aluminum aerial Work Platform

        型号 Moder   GTWY12-200S

安全载荷/Pated Load ...................................................200kg

工作高度/Working Height ....................................................14m

平台高度/Platform Height ..................................................12m

 整机长度/Overall length SA..............................................................1.62m



整机宽度/Overall width...............................................................0.95m

整机高度/Overdll height .SA...........................................................2.25m  可选择高度1.98m



工作平台尺寸/Platform size..SA...............................................1.38*0.62m



离地间隙/Ground clearance.......................................................0.08m

轴距/Wheel bas   SA.....................................................1.47m



支撑面积Maximum support area..SA........................................................2.3*2.1m



起升电/Lifting power  AC...................................................................220VAC/1.1kw

                       DC...................................................................24VDC/0.8kw

 蓄电池/Battery.................................24v/100Ah

充电器/Charger.................................24v/50A

上升速度/Lifting speed ................................115sec

下降速度/Descending speed ............................可调

轮胎/Tyre  后胎/Rear tyre.................................φ150*50mm

           前胎/Front tyre................................φ150*50mm

 整机重量/Weight  GTWY12-200S...............650kg

标准配置 /  Standard configuration

-调平支腿 / Chassis wiht level gauge          -紧急停止按钮/Emerhgency stop button

-双控制器操作/Dual activated up/down switch -紧急下降拉钮/Emerhgency Descending button

-水平指示器/Level gauge                   -超载限制/Over load protection
