产品名称:GTWY12-300S

发布日期:2018-04-08

点击数:3743

询价:点击产品询价

二维码:

简述:

产品详情

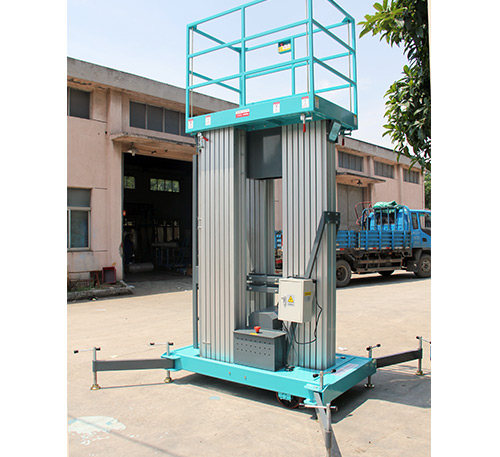

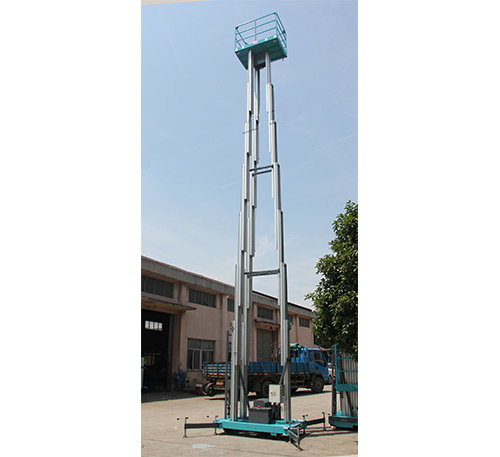

三桅式铝合金升降机Triple Mast aluminum aerial Work Platform

            型号 Moder   GTWY12-300S

安全载荷/Pated Load ...................................................250kg

工作高度/Working Height ....................................................14m

平台高度/Platform Height ..................................................12m

 整机长度/Overall length..............................................................1.9m

整机宽度/Overall width...............................................................1.10m

整机高度/Overdll height...............................................................2.52m可选择高度2.32m

工作平台尺寸/Platform size.................................................1.4*0.88m

离地间隙/Ground clearance.......................................................0.1m

轴距/Wheel bas.....................................................................................1.25m

支撑面积Maximum support area..........................................................2.70*2.20m

起升电/Lifting power AC...................................................................220VAC/1.5kw

                     DC...................................................................24VDC/2.2kw

 蓄电池/Battery.................................24v/120Ah

充电器/Charger.................................24v/50A

上升速度/Lifting speed ................................115sec

下降速度/Descending speed ............................可调

轮胎/Tyre 后胎/Rear tyre.................................φ200*50mm

         前胎/Front tyre................................φ200*50mm

 整机重量/Weight  GTWY12-300S...............950kg

标准配置 /  Standard configuration

-调平支腿 / Chassis wiht level gauge          -紧急停止按钮/Emerhgency stop button

-双控制器操作/Dual activated up/down switch -紧急下降拉钮/Emerhgency Descending button

-水平指示器/Level gauge                   -超载限制/Over load protection
