产品详细

41 41 41

产品名称: GTWY16-4200S

发布日期: 2018-04-08

点击数: 2265

询价: 点击产品询价

二维码:

简述: 机器高度16米

产品详情

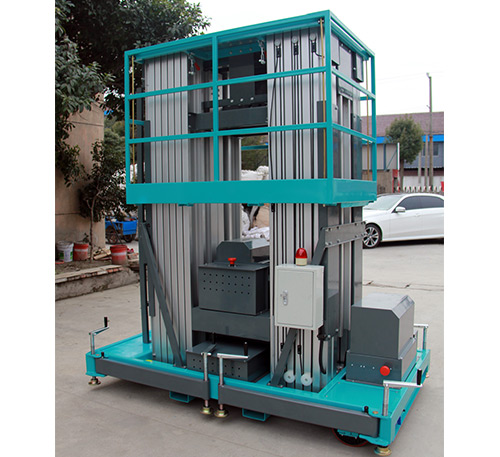

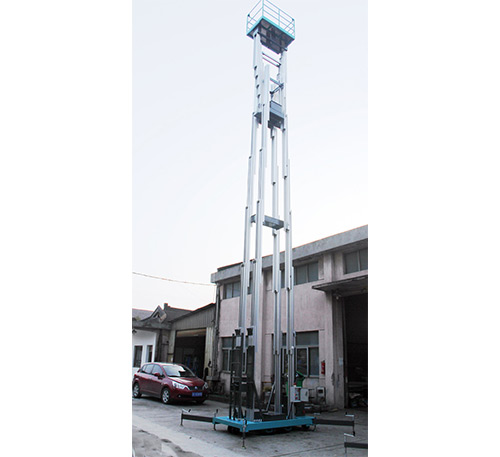

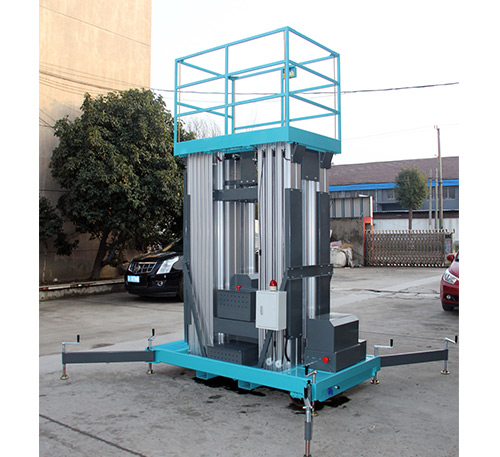

六桅式铝合金升降机Multi Mast aluminum aerial Work Platform

      型号 Moder   GTWY16-4200S

安全载荷/Pated Load ..................................................150kg

工作高度/Working Height ....................................................18m

平台高度/Platform Height ..................................................16m

 整机长度/Overall length..............................................................2.28m

整机宽度/Overall width...............................................................1.35m

整机高度/Overdll height...............................................................2.32m

工作平台尺寸/Platform size.................................................1.45*0.90m

离地间隙/Ground clearance.......................................................0.1m

轴距/Wheel bas.....................................................................................1.35m

支撑面积Maximum support area..........................................................3.25*2.95m

起升电/Lifting power AC...................................................................220VAC/1.5/1.1kw

                     DC...................................................................24VDC/2.2/0.8kw

 蓄电池/Battery.................................24v/120Ah

充电器/Charger.................................24v/50A

上升速度/Lifting speed ...............................127/102sec

下降速度/Descending speed ............................可调

轮胎/Tyre 后胎/Rear tyre.................................φ250*50mm

         前胎/Front tyre................................φ200*50mm

 整机重量/Weight  GTWY16-4200S...............1680kg

标准配置 /  Standard configuration

-调平支腿 / Chassis wiht level gauge          -紧急停止按钮/Emerhgency stop button

-双控制器操作/Dual activated up/down switch -紧急下降拉钮/Emerhgency Descending button

-水平指示器/Level gauge                   -超载限制/Over load protection

六桅式铝合金升降机Multi Mast aluminum aerial Work Platform

      型号 Moder   GTWY18-4200S

安全载荷/Pated Load ..................................................150kg

工作高度/Working Height ....................................................20m

平台高度/Platform Height ..................................................18m

 整机长度/Overall length..............................................................2.28m

整机宽度/Overall width...............................................................1.35m

整机高度/Overdll height...............................................................2.52m

工作平台尺寸/Platform size.................................................1.45*0.90m

离地间隙/Ground clearance.......................................................0.1m

轴距/Wheel bas.....................................................................................1.35m

支撑面积Maximum support area..........................................................3.25*2.95m

起升电/Lifting power AC...................................................................220VAC/1.5/1.1kw

                     DC...................................................................24VDC/2.2/0.8kw

 蓄电池/Battery.................................24v/120Ah

充电器/Charger.................................24v/50A

上升速度/Lifting speed ...............................132/104sec

下降速度/Descending speed ............................可调

轮胎/Tyre 后胎/Rear tyre.................................φ250*50mm

         前胎/Front tyre................................φ200*50mm

 整机重量/Weight  GTWY18-4200S...............1790kg

标准配置 /  Standard configuration

-调平支腿 / Chassis wiht level gauge          -紧急停止按钮/Emerhgency stop button

-双控制器操作/Dual activated up/down switch -紧急下降拉钮/Emerhgency Descending button

-水平指示器/Level gauge                   -超载限制/Over load protection
